Vacuum Furnaces Available for Quick Delivery!

Vacuum Furnaces Available For Immediate Delivery

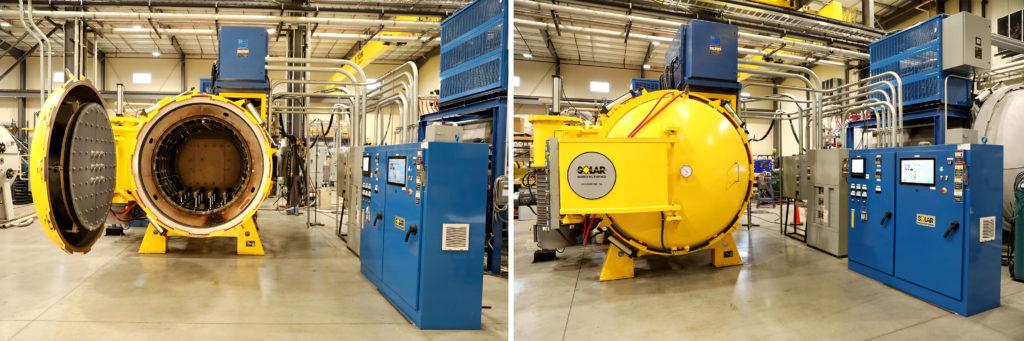

SF-199  •  HFL-5748-2IQ Vacuum Furnace

Solar Manufacturing Vacuum Heat Treating Furnace

This furnace was manufactured in 2018 and has been refurbished, assembled and tested on our shop floor and is therefore in like-new condition.

  • The entire hot zone consists of a 2” graphite insulated hot zone supported on a heavy-duty #304 stainless steel structure.
  • Hot zone measuring 36″ W x 36″ H x 48″ D
  • Double walled, water cooled A-36 carbon steel chamber designed for 2-bar positive pressure Nitrogen gas cooling
  • Energy efficient graphite felt insulation for operating temperatures up to 2400°F
  • Temperature uniformity of ±10°F between 800°F to 2150°F, AMS 2750F Compliant
  • Weight capacity of up to 5,000 pounds
  • Internal gas quenching up to 15PSIG (2 Bar)
  • 150 horsepower high velocity gas recirculating system
  • Stokes Model 412J / 615MHR, Mechanical / Booster Pump/20: Varian Diffusion Pump
  • Two gas (nitrogen/argon) backfill system
  • Two gas (nitrogen/argon) partial pressure
  • 240 KVA VRT hot zone power supply
  • SolarVac® 5000 Polaris control system
  • Power Distribution Panel
  • Type “S” thermocouples for over temperature and control
  • Twelve (12) type “K” workload thermocouple assembly with thermocouples
  • EMT conduit between control cabinet and furnace
  • One year warranty (from date of shipment)



For more information, contact our sales department at info@solarmfg.com.

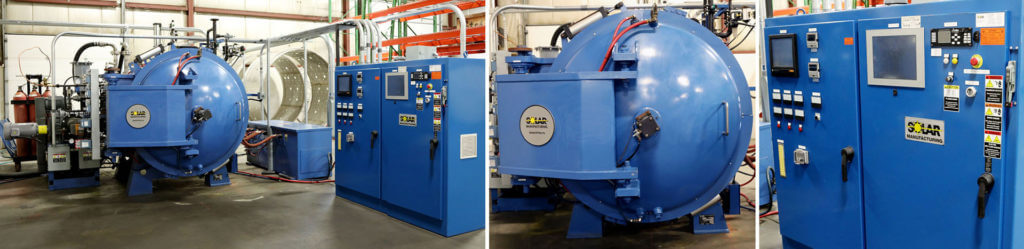

SR-11311  •  HFL-4252-2IQ Vacuum Furnace

Solar Manufacturing Like-New-Furnace

This furnace was manufactured in 2013. It was installed in a customer’s facility, fully tested and accepted, but never placed into service, therefore it is in like-new condition.

  • The entire hot zone consists of a 1-1/2” graphite insulated hot zone supported on a heavy-duty #304 stainless steel structure.
  • Hot zone measuring 26″ W x 26″ H x 52″ D
  • Double walled, water cooled A-36 carbon steel chamber designed for 2-bar positive pressure Nitrogen gas cooling
  • Energy efficient graphite felt insulation for operating temperatures up to 2400°F
  • Temperature uniformity of ±10°F between 1000°F to 2150°F, AMS 2750F Compliant
  • Weight capacity of up to 1,800 pounds
  • 50 horsepower high velocity gas recirculating system
  • Stokes Model 412J / 615MHR, Mechanical / Booster Pump
  • Allen Bradley Variable Frequency Drive for 50 HP gas blower
  • Single inert gas backfill system
  • 195 KVA VRT hot zone power supply
  • SolarVac® 5000 control system
  • Type “K” thermocouples for over temperature and control
  • Twelve (12) type “K” workload thermocouple assembly with thermocouples
  • EMT conduit between control cabinet and furnace
  • One year warranty (from date of shipment)
  • One service engineer to commission the furnace, post assembly at Customer’s facility in continental USA



For more information, contact our sales department at info@solarmfg.com.








Vacuum Furnaces Available For Quick Delivery (4-8 weeks)

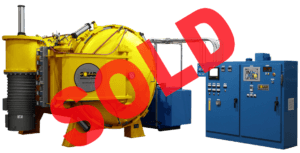

SF-232  •  HFL-5748-2IQ Vacuum Furnace

Internal Quench Vacuum Furnace

  • Hot zone measuring 36″ W x 36″ H x 48″ D
  • Weight capacity of up to 5,000 pounds
  • Energy efficient graphite felt insulation for operating temperatures up to 2400°F
  • Temperature uniformity of ±10°F, AMS 2750E Compliant
  • Internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Polaris controls upgrade
  • Comprehensive one year warranty


SF-238  •  HFL-5748-2IQ Vacuum Furnace

Internal Quench Vacuum Furnace

  • Hot zone measuring 36″ W x 36″ H x 48″ D
  • Weight capacity of up to 5,000 pounds
  • Energy efficient graphite felt insulation for operating temperatures up to 2400°F
  • Temperature uniformity of ±10°F, AMS 2750E Compliant
  • Internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-239  •  HFL-5748-2IQ Vacuum Furnace

Internal Quench Vacuum Furnace

  • Hot zone measuring 36″ W x 36″ H x 48″ D
  • Weight capacity of up to 5,000 pounds
  • Energy efficient graphite felt insulation for operating temperatures up to 2400°F
  • Temperature uniformity of ±10°F, AMS 2750E Compliant
  • Internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Polaris controls upgrade
  • Comprehensive one year warranty








Vacuum Furnaces Available Soon (12+ weeks)

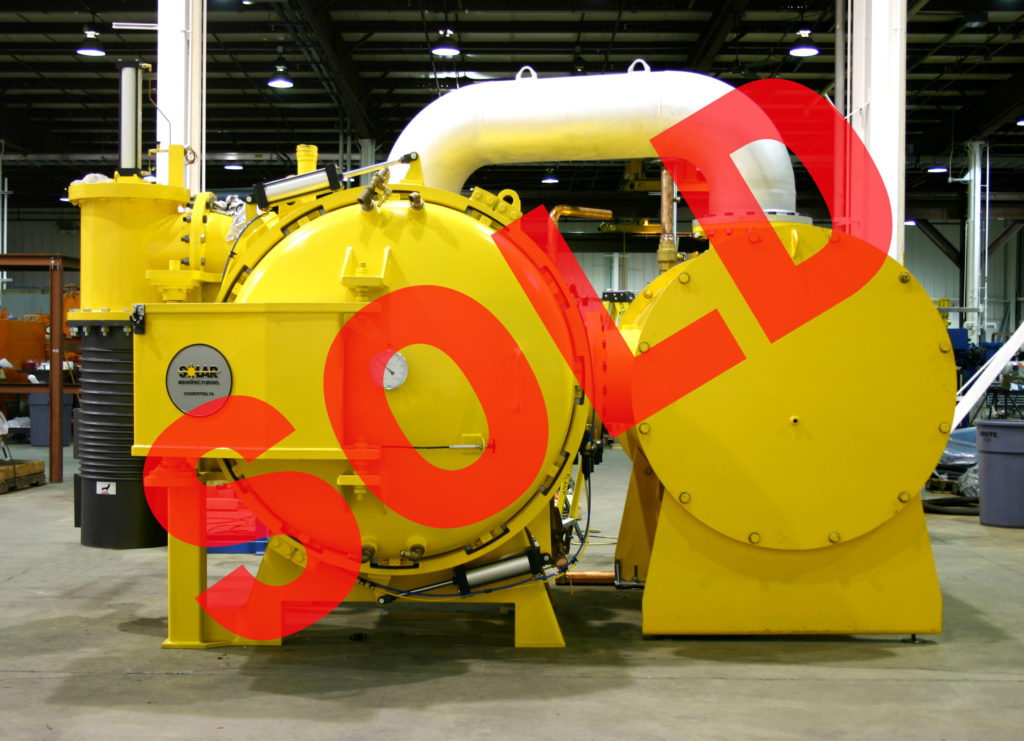

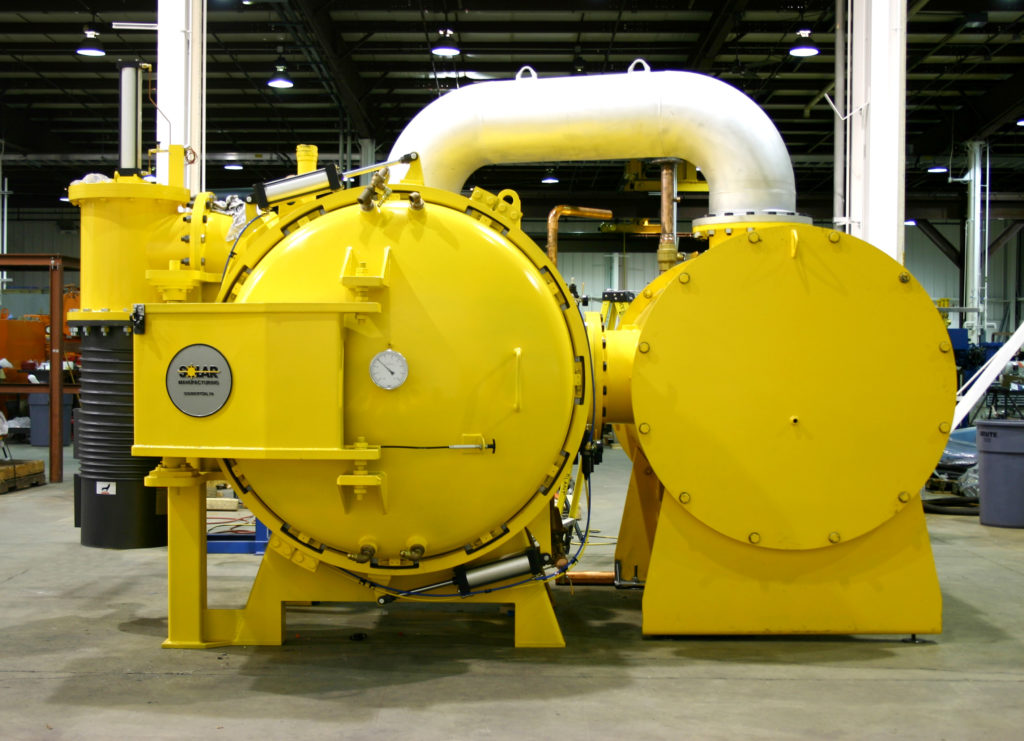

SF-122  •  HFL-3836-2EQ Vacuum Furnace

External Quench Vacuum Furnace

This furnace was manufactured in 2013, completely refurbished with a new graphite insulated hot zone.

  • The entire hot zone consists of a 2” graphite insulated hot zone supported on a heavy-duty #304 stainless steel structure.
  • Hot zone measuring 24″ W x 24″ H x 36″ D
  • Double walled, water cooled A-36 carbon steel chamber designed for 2-bar positive pressure Nitrogen gas cooling
  • Energy efficient graphite felt insulation for operating temperatures up to 2400°F
  • Temperature uniformity of ±10°F between 800°F to 2150°F, AMS 2750F Compliant
  • Weight capacity of up to 1,500 pounds
  • External gas quenching up to 15PSIG (2 Bar)
  • 50 horsepower high velocity gas recirculating system
  • Stokes Model 412J / 615MHR, Mechanical / Booster Pump/20: Varian Diffusion Pump
  • Two gas (nitrogen/argon) backfill system
  • Two gas (nitrogen/argon) partial pressure
  • 240 KVA VRT hot zone power supply
  • SolarVac® 5000 Polaris control system
  • Power Distribution Panel
  • Type “S” thermocouples for over temperature and control
  • Twelve (12) type “K” workload thermocouple assembly with thermocouples
  • EMT conduit between control cabinet and furnace
  • One year warranty (from date of shipment)



For more information, contact our sales department at info@solarmfg.com.

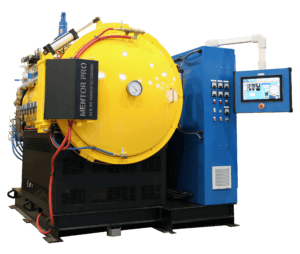

SF-254  •  The Mentor® Vacuum Furnace

The Mentor Vacuum Furnace

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Graphite insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F (2800°F available)
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty

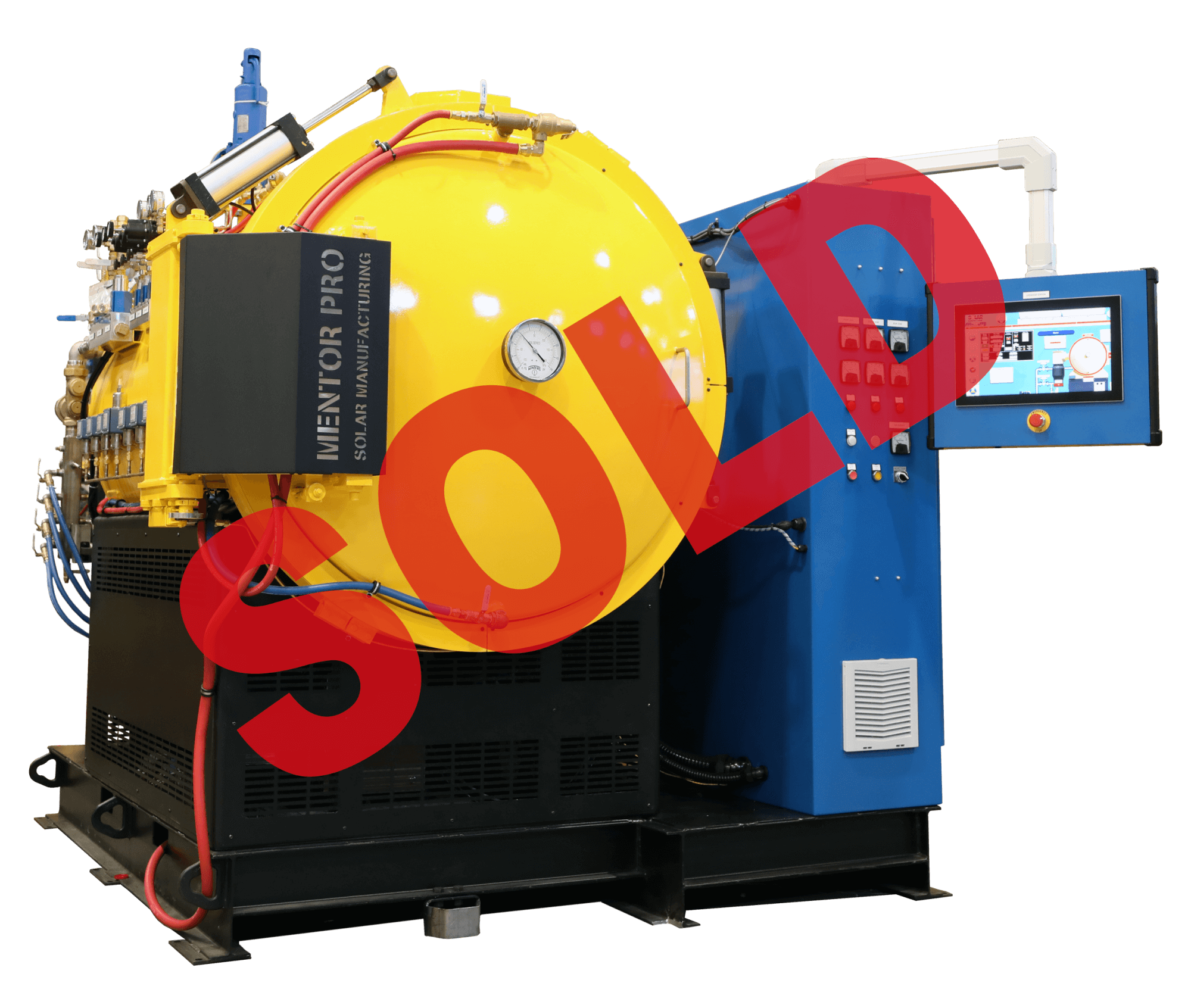

SF-255  •  The Mentor® Vacuum Furnace (All-Metal Hot Zone)

The Mentor Vacuum Furnace - Sold

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Metallic insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-256  •  The Mentor® Vacuum Furnace (All-Metal Hot Zone)

The Mentor Vacuum Furnace - Sold

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Metallic insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-260  •  The Mentor® Vacuum Furnace

The Mentor Vacuum Furnace

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Graphite insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F (2800°F available)
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-261  •  The Mentor® Vacuum Furnace

The Mentor Vacuum Furnace

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Graphite insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F (2800°F available)
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-262  •  The Mentor® Vacuum Furnace

The Mentor Vacuum Furnace

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Graphite insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F (2800°F available)
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-263  •  The Mentor® Vacuum Furnace

The Mentor Vacuum Furnace

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Graphite insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F (2800°F available)
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-264  •  The Mentor® Vacuum Furnace (All-Metal Hot Zone)

The Mentor Vacuum Furnace

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Metallic insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty




SF-265  •  The Mentor® Vacuum Furnace (All-Metal Hot Zone)

The Mentor Vacuum Furnace

  • Mounted on a single, portable platform for easy shipment, compact footprint, and maneuverability
  • Metallic insulated hot zone measuring 12″ W x 12″ H x 18″ D
  • Weight capacity of 250 pounds
  • Operating temperatures up to 2400°F
  • Temperature uniformity of approximately ±10°F, AMS 2750E compliant
  • High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar)
  • SolarVac® Essentials fully automated and programmable industrial controls package
  • Comprehensive one year warranty
